Adguard settings on OPNsense with Unbound

Under Settings > DNS Settings:

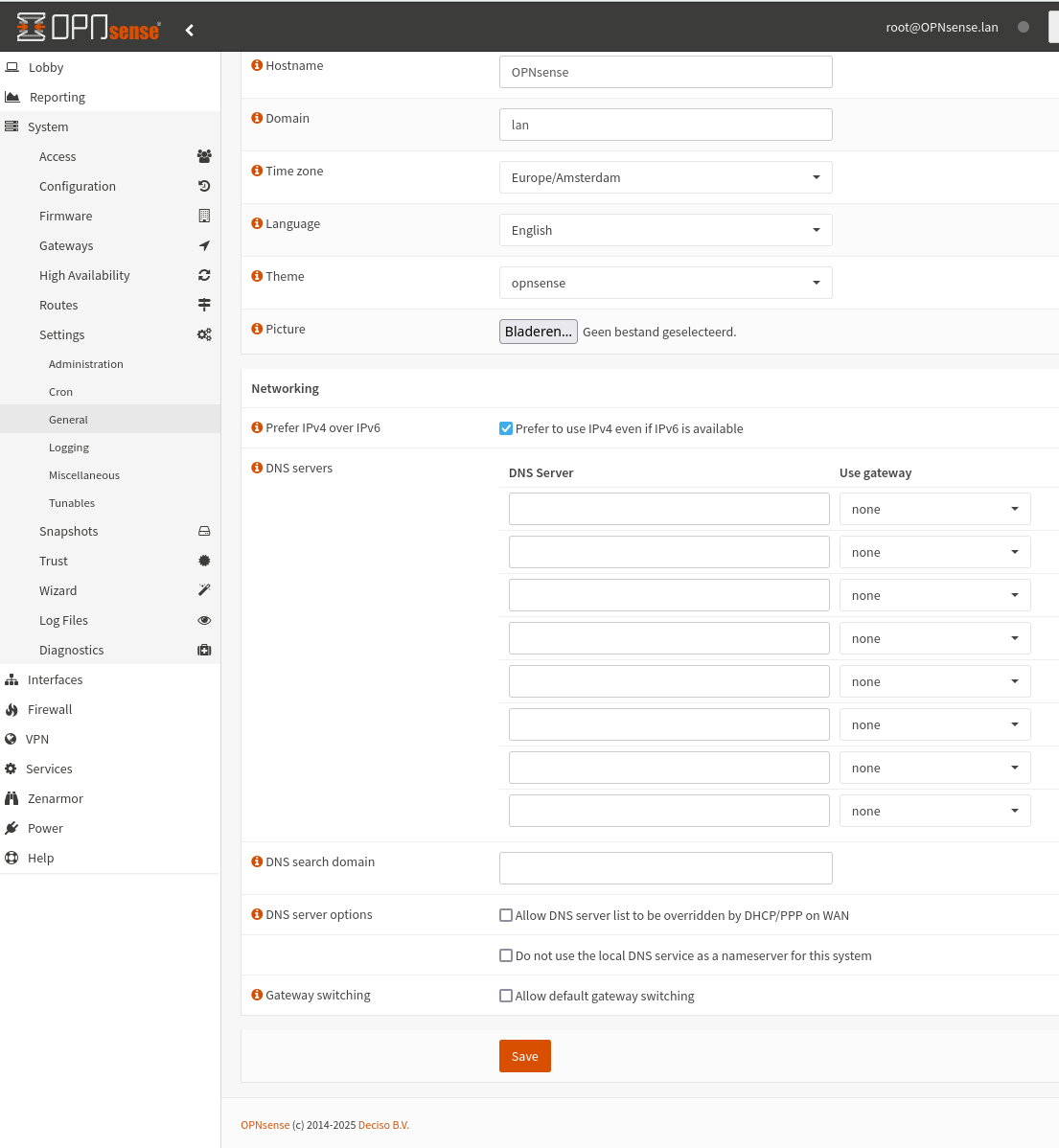

OPNsense - Settings / General:

• Prefer IPv4 over IPv6: Checked

• DNS Servers: all empty

OPNsense - Services

• DHCPv4 / LAN / DNS Servers: All empty for all Interfaces

Unbound

• Listen Port: 5353

• DNSSEC: Checked

• DHCP Registration: Checked

• DHCP Static Mappings: Checked

• DNS Cache: Checked, Flush cache

• Overrides - non set

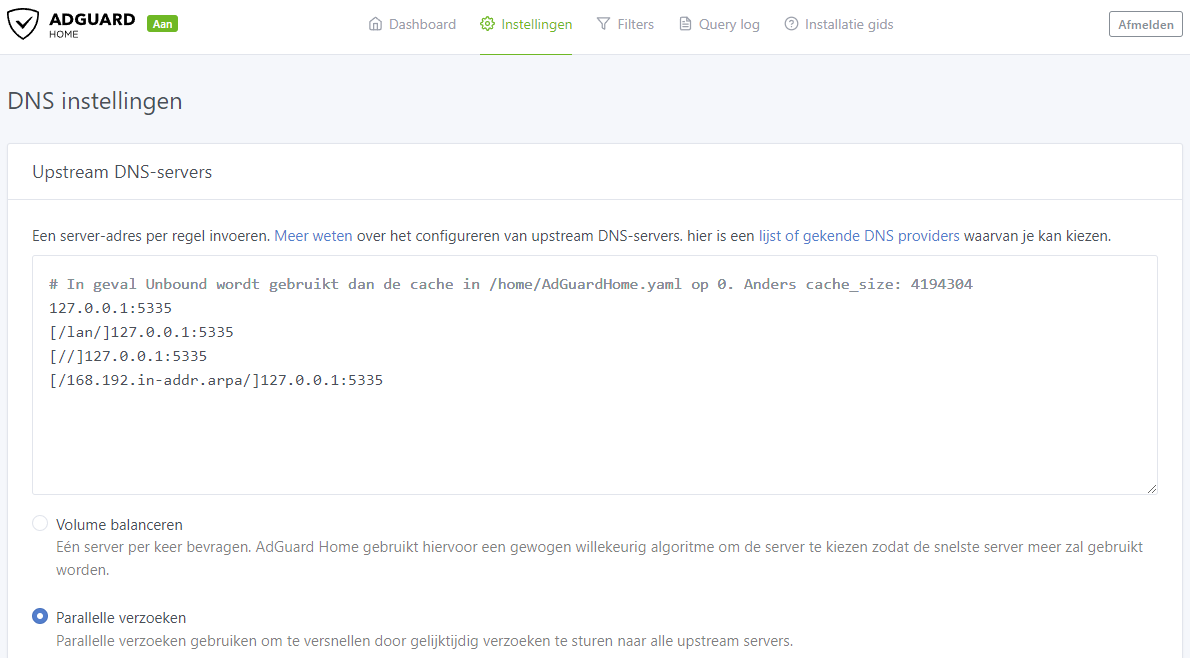

AdGuard Home

• Enabled: Checked

• Primary DNS: Checked

• Upstream DNS server:


  127.0.0.1:5353
  [/lan/]127.0.0.1:5353
  [//]127.0.0.1:5353
  [/168.192.in-addr.arpa/]127.0.0.1:5353

• When using Unbound set cache to 0 (leave empty). In other cases use a cache_size: 4194304

Firewall (each interface, below for LAN)

• TCP/IP: IPv4+6

• Protocol: TCP/UDP

• Source: LAN net

• Destination: LAN address

• Dest Port Range: DNS
