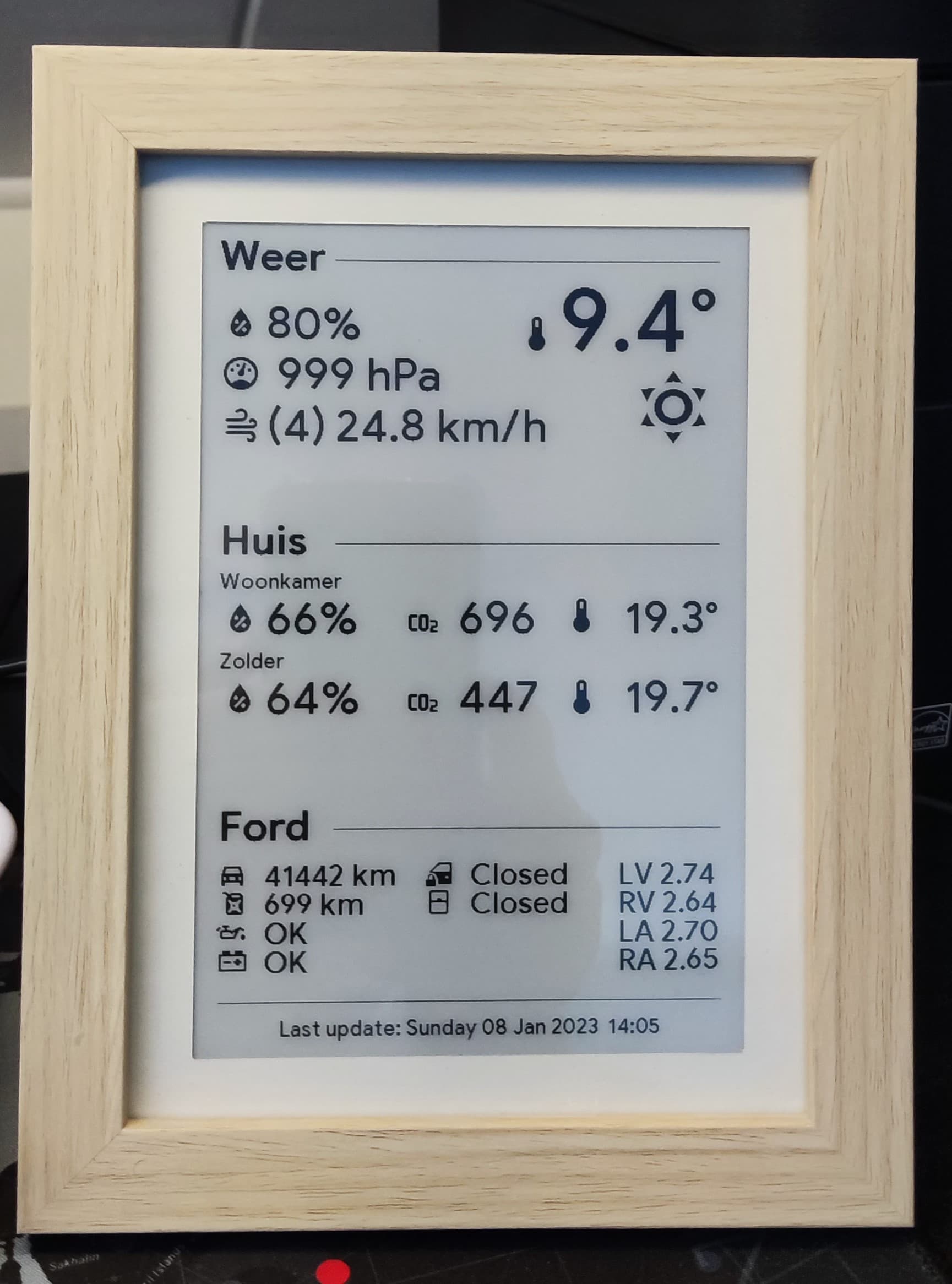

ESPHome code for 7,5 inch Waveshare ePaper Display - Home Automation

# 15-10-2023 Updated the code due to changes in the FordPass Api
# Also changes the deep-sleep method.
# Made a input_boolean in Home Assistant to be able to prevent deep sleep like:
#
# prevent_deep_sleep:
# name: "Prevent deep sleep"
# initial: false
#
esphome:
name: "epaper1"
on_boot:
priority: -200.0
then:
- component.update: eink_display
- wait_until:
condition:
lambda: 'return id(data_updated) == true;'
# Wait a bit longer so all the items are received
- delay: 5s
- logger.log: "Initial sensor data received: Refreshing display..."
- lambda: "id(initial_data_received) = true;"
- script.execute: update_screen
- delay: 20s
- script.execute: consider_deep_sleep


esp32:
board: esp32dev
framework:
type: arduino


# Enable logging
logger:



# Enable Home Assistant API
api:
encryption:
key: "xDIfV9w1+pU9uTXCGcNpG2tas8UgDeiNflfczJYJvnA="


ota:
- platform: esphome


wifi:
ssid: !secret wifi_ssid_iot
password: !secret wifi_password_iot
# Enable fallback hotspot (captive portal) in case wifi connection fails
# ap:
# ssid: "Epaper1 Fallback Hotspot"
# password: !secret fallback_pw


captive_portal:


web_server:


# Global variables for detecting if the display needs to be refreshed. (Thanks @paviro!)
globals:
- id: data_updated
type: bool
restore_value: no
initial_value: 'false'
- id: initial_data_received
type: bool
restore_value: no
initial_value: 'false'
- id: recorded_display_refresh
type: int
restore_value: yes
initial_value: '0'



# Script for updating screen - Refresh display and publish refresh count and time. (Thanks @paviro!)
script:
- id: update_screen
then:
- lambda: 'id(data_updated) = false;'
- component.update: eink_display
- lambda: 'id(recorded_display_refresh) += 1;'
- id: consider_deep_sleep
mode: queued
then:
- delay: 15s
- if:
condition:
binary_sensor.is_on: prevent_deep_sleep
then:
- logger.log: 'Skipping sleep, per prevent_deep_sleep'
else:
- deep_sleep.enter: deep_sleep_control


- script.execute: consider_deep_sleep



time:
- platform: sntp
id: ntp
timezone: Europe/Amsterdam
servers:
- 0.pool.ntp.org
- 1.pool.ntp.org
- 2.pool.ntp.org
# Check whether the display needs to be refreshed every minute,
# based on whether new data is received or motion is detected. (Thanks @paviro!)
- platform: homeassistant
id: homeassistant_time
on_time:
- seconds: 0
minutes: /45
then:
- script.execute: update_screen


# Pins for Waveshare ePaper ESP Board
spi:
clk_pin: GPIO13
mosi_pin: GPIO14


# Deep Sleep ###################################################################
deep_sleep:
id: deep_sleep_control
sleep_duration: 45min


font:
- file: "fonts/GoogleSans-Medium.ttf"
id: xtra_large_font
size: 80
glyphs:
[ '-', '.','°', '0','1', '2', '3', '4', '5', '6', '7', '8', '9']
- file: "fonts/GoogleSans-Medium.ttf"
id: large_font
size: 56
glyphs:
['&', '@', '!', ',', '.', '"', '%', '(', ')', '+', '-', '_', ':', '°', '0',
'1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E',
'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S',
'T', 'U', 'V', 'W', 'X', 'Y', 'Z', ' ', 'a', 'b', 'c', 'd', 'e', 'f',
'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
'u', 'v', 'w', 'x', 'y', 'z','å', 'ä', 'ö', '/']
- file: "fonts/GoogleSans-Bold.ttf"
id: medium_fontb
size: 36
glyphs:
['&', '@', '!', ',', '.', '"', '%', '(', ')', '+', '-', '_', ':', '°', '0',
'1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E',
'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S',
'T', 'U', 'V', 'W', 'X', 'Y', 'Z', ' ', 'a', 'b', 'c', 'd', 'e', 'f',
'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
'u', 'v', 'w', 'x', 'y', 'z', 'å', 'ä', 'ö', '/']
- file: "fonts/GoogleSans-Medium.ttf"
id: medium_fontm
size: 40
glyphs:
['&', '@', '!', ',', '.', '"', '%', '(', ')', '+', '-', '_', ':', '°', '0',
'1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E',
'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S',
'T', 'U', 'V', 'W', 'X', 'Y', 'Z', ' ', 'a', 'b', 'c', 'd', 'e', 'f',
'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
'u', 'v', 'w', 'x', 'y', 'z', 'å', 'ä', 'ö', '/']
- file: "fonts/GoogleSans-Medium.ttf"
id: small_font
size: 26
glyphs:
['&', '@', '!', ',', '.', '"', '%', '(', ')', '+', '-', '_', ':', '°', '0',
'1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E',
'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S',
'T', 'U', 'V', 'W', 'X', 'Y', 'Z', ' ', 'a', 'b', 'c', 'd', 'e', 'f',
'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
'u', 'v', 'w', 'x', 'y', 'z', 'å', 'ä', 'ö', '/']
- file: "fonts/GoogleSans-Medium.ttf"
id: xtra_small_font
size: 18
glyphs:
['&', '@', '!', ',', '.', '"', '%', '(', ')', '+', '-', '_', ':', '°', '0',
'1', '2', '3', '4', '5', '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E',
'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S',
'T', 'U', 'V', 'W', 'X', 'Y', 'Z', ' ', 'a', 'b', 'c', 'd', 'e', 'f',
'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
'u', 'v', 'w', 'x', 'y', 'z', 'å', 'ä', 'ö', '/']


# https://pictogrammers.github.io/@mdi/font/5.3.45/
- file: "fonts/materialdesignicons-webfont.ttf"
id: font_icons_small
size: 26
glyphs:
- "\U000F140B" # Energy
- "\U000F0E1B" # Car
- "\U000F03C7" # Car oil
- "\U000F010C" # Car battery
- "\U000F07CA" # mdi-fuel
- "\U000F109D" # Car doors closed
- "\U000F0B6B" # Car doors open
- "\U000F05B1" # Car windows open
- "\U000F05AE" # Car windows closed
- "\U000F029A" # mdi-gauge
- "\U000F058E" # mdi-water-percent
- "\U000F07E4" # mdi-molecule-co2


- file: "fonts/materialdesignicons-webfont.ttf"
id: font_icons_medium
size: 36
glyphs:
- "\U000F10C2" # Temperature High
- "\U000F10C3" # Temperature Low
- "\U000F050F" # mdi-thermometer
- "\U000F029A" # mdi-gauge
- "\U000F058E" # mdi-water-percent
- "\U000F07E4" # mdi-molecule-co2
- "\U000F059D" # mdi-weather-windy
- "\U000F04E0" # mdi-sunglasses


- file: "fonts/materialdesignicons-webfont.ttf"
id: font_icons_large
size: 80
glyphs:
- "\U000F0599" # mdi-weather-sunny (clear)
- "\U000F0595" # mdi-weather-partly-cloudy (partlycloudy)
- "\U000F0590" # mdi-weather-cloudy (cloudy)
- "\U000F0591" # mdi-weather-fog (partlycloudy-fog)
- "\U000F0F33" # mdi-weather-partly-rainy (partlycloudy-light-rain)
- "\U000F0F32" # mdi-weather-partly-lightning (partlycloudy-rain)
- "\U000F0597" # mdi-weather-rainy (light-rain)
- "\U000F0596" # mdi-weather-pouring (rainy)
- "\U000F067F" # mdi-weather-snowy-rainy (snowy-rainy)
- "\U000F0F35" # mdi-weather-partly-snowy-rainy (partlycloudy-light-snow)
- "\U000F0F34" # mdi-weather-partly-snowy (partlycloudy-snow)
- "\U000F0598" # mdi-weather-snowy (light-snow)
- "\U000F0F36" # mdi-weather-snowy-heavy (snowy)
- "\U000F067E" # mdi-weather-lightning-rainy (partlycloudy-lightning)
- "\U000F0593" # mdi-weather-lightning (lightning)


sensor:


# Buienradar
- platform: homeassistant
entity_id: sensor.temperatuur
id: br_temperature
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: weather.buienradar
id: br_humidity
attribute: humidity
unit_of_measurement: "%"
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


- platform: homeassistant
entity_id: weather.buienradar
id: br_pressure
attribute: pressure
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.wind_force
id: br_wind_force
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.wind_speed
id: br_wind_speed
unit_of_measurement: "km/h"
state_class: "measurement"
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: wind_speed
entity_id: weather.buienradar
attribute: wind_speed
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
# Ford
- platform: homeassistant
entity_id: sensor.fordpass_odometer
id: odometer
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.distance_to_empty
id: dis_to_empty
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.front_left
id: front_left
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.front_right
id: front_right
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.rear_left
id: rear_left
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.rear_right
id: rear_right
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
# Huis
- platform: homeassistant
id: temp_woonk
entity_id: climate.woonkamer
attribute: current_temperature
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: temp_woonk_set
entity_id: climate.woonkamer
attribute: temperature
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: hum_woonk
entity_id: sensor.woonkamer_humidity
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: co2_woonk
entity_id: sensor.senseair_co2_value
unit_of_measurement: "ppm"
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: temp_zolder
entity_id: climate.zolder
attribute: current_temperature
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: hum_zolder
entity_id: sensor.zolder_slk_hum
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
id: co2_zolder
entity_id: sensor.airquality2_co2_value
unit_of_measurement: "ppm"
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


# UV index (https://www.home-assistant.io/integrations/openuv/), updated via automation.yaml
- platform: homeassistant
id: cur_uv_index
entity_id: sensor.current_uv_index
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


- platform: homeassistant
id: max_uv_index
entity_id: sensor.max_uv_index
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


- platform: homeassistant
entity_id: sensor.fordpass_oil
id: car_oil
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.fordpass_battery
id: car_battery
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


text_sensor:
# sun/moon
- platform: homeassistant
entity_id: sun.sun
id: sun
internal: true


- platform: homeassistant
id: br_condition
entity_id: sensor.condition
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


- platform: homeassistant
entity_id: sensor.wind_direction
id: br_windrichting
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'
- platform: homeassistant
entity_id: sensor.fordpass_doorstatus
id: car_doors
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


- platform: homeassistant
entity_id: sensor.fordpass_windowposition
id: car_windows
internal: true
on_value:
then:
- lambda: 'id(data_updated) = true;'


binary_sensor:
- platform: homeassistant
id: prevent_deep_sleep
entity_id: input_boolean.prevent_deep_sleep
on_press:
then:
- deep_sleep.prevent: deep_sleep_control



# Now render everything on the ePaper screen.
display:
- platform: waveshare_epaper
id: eink_display
cs_pin: GPIO15
dc_pin: GPIO27
# THE BUSY PIN MUST BE INVERTED ON 7.50inv2 ePaper Screens!
busy_pin:
number: GPIO25
# inverted: True
reset_pin: GPIO26
# 800x480 px
# model: 7.50inV2
model: 7.50inV2alt
update_interval: never
reset_duration: 2ms
rotation: 270°
lambda: |-
#define xres 480
#define yres 800
#define x_pad 20 // border padding
#define y_pad 60 // border padding
#define val_pad 70 // padding before value
#define icon_y_pad 8 //padding after icons
#define y_header_weer 70 // Plaats van de Weer header
#define y_header_huis 340 // Plaats van de Huis header
#define y_header_ford 570 // Plaats van de Ford header
#define weather_icon_x xres/4-x_pad


int y = 10;


if(isnan(id(br_temperature).state))
{
it.printf(20, y+90, id(small_font), TextAlign::LEFT, "Waiting for data .....");
}
else
{



// HET WEER


//Header with a line from e.g. [x=0,y=0] to [x=50,y=50]
it.printf(x_pad, y_header_weer, id(medium_fontb), TextAlign::BASELINE_LEFT, "Weer");
it.line(x_pad+100, y_header_weer-10, xres-x_pad, y_header_weer-10);


// it.printf(x_pad, y_header_weer+40, id(medium_fontm), TextAlign::BASELINE_LEFT, "%s", id(br_symbol).state.c_str());


// Buiten temperatuur
// if (id(br_temperature).state < 10)
// {
// it.printf(xres-x_pad-180, y_header_weer+68, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F050F");
// }
//else
// {
// it.printf(xres-x_pad-200, y_header_weer+68, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F050F");
// }


it.printf(xres-x_pad, y_header_weer+70, id(xtra_large_font), TextAlign::BASELINE_RIGHT, "%2.1f°", id(br_temperature).state);


// Buiten vochtigheid
it.printf(x_pad, y_header_weer+60, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F058E");
it.printf(x_pad+40, y_header_weer+60, id(medium_fontm), TextAlign::BASELINE_LEFT, "%2.0f%%", id(br_humidity).state);


// Luchtdruk
it.printf(x_pad, y_header_weer+105, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F029A");
it.printf(x_pad+40, y_header_weer+105, id(medium_fontm), TextAlign::BASELINE_LEFT, "%4.0f hPa", id(br_pressure).state);


// Wind
it.printf(x_pad, y_header_weer+150, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F059D");
it.printf(x_pad+40, y_header_weer+150, id(medium_fontm), TextAlign::BASELINE_LEFT, "(%1.0f)", id(br_wind_force).state);
it.printf(x_pad+100, y_header_weer+150, id(medium_fontm), TextAlign::BASELINE_LEFT, "%2.1f km/h", id(wind_speed).state);


//UV Index
it.printf(x_pad, y_header_weer+195, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F04E0");
it.printf(x_pad+45, y_header_weer+195, id(medium_fontm), TextAlign::BASELINE_LEFT, "%1.1f", id(cur_uv_index).state);
it.printf(x_pad+100, y_header_weer+195, id(medium_fontm), TextAlign::BASELINE_LEFT, "/%1.1f", id(max_uv_index).state);



// Windrichting
it.printf(xres-x_pad-10, y_header_weer+200, id(medium_fontm), TextAlign::BASELINE_RIGHT, "%s", id(br_windrichting).state.c_str());


// Icoon
if (id(br_condition).state == "clear") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0599");}
if (id(br_condition).state == "partlycloudy") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0595");}
if (id(br_condition).state == "cloudy") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0590");}
if (id(br_condition).state == "partlycloudy-fog") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0591");}
if (id(br_condition).state == "partlycloudy-light-rain") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0F33");}
if (id(br_condition).state == "partlycloudy-rain") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0F32");}
if (id(br_condition).state == "light-rain") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0597");}
if (id(br_condition).state == "rainy") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0596");}
if (id(br_condition).state == "snowy-rainy") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F067F");}
if (id(br_condition).state == "partlycloudy-light-snow") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0F35");}
if (id(br_condition).state == "partlycloudy-snow") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0F34");}
if (id(br_condition).state == "light-snow") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0598");}
if (id(br_condition).state == "snowy") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0F36");}
if (id(br_condition).state == "partlycloudy-lightning") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F067E");}
if (id(br_condition).state == "lightning") {
it.printf(xres-x_pad, y_header_weer+150, id(font_icons_large), TextAlign::BASELINE_RIGHT, "\U000F0593");}


// HUIS
//Header with a line from e.g. [x=0,y=0] to [x=50,y=50]
it.printf(x_pad, y_header_huis, id(medium_fontb), TextAlign::BASELINE_LEFT, "Huis");
it.line(x_pad+100, y_header_huis-10, xres-x_pad, y_header_huis-10);


it.printf(x_pad, y_header_huis+30, id(xtra_small_font), TextAlign::BASELINE_LEFT, "Woonkamer");


// Binnen vochtgehalte woonkamer
it.printf(x_pad, y_header_huis+70, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F058E");
it.printf(x_pad+40, y_header_huis+70, id(medium_fontm), TextAlign::BASELINE_LEFT, "%2.0f%%", id(hum_woonk).state);


// Binnen co2 woonkamer
it.printf(x_pad+160, y_header_huis+75, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F07E4");
it.printf(x_pad+200, y_header_huis+70, id(medium_fontm), TextAlign::BASELINE_LEFT, "%4.0f", id(co2_woonk).state);


// Binnen temperatuur woonkamer
it.printf(xres-x_pad-120, y_header_huis+68, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F050F");
// it.printf(xres-110, y_header_huis+50, id(medium_fontm), TextAlign::BASELINE_RIGHT, "%2.1f", id(temp_woonk_set).state);
it.printf(xres-x_pad, y_header_huis+70, id(medium_fontm), TextAlign::BASELINE_RIGHT, "%2.1f°", id(temp_woonk).state);


it.printf(x_pad, y_header_huis+100, id(xtra_small_font), TextAlign::BASELINE_LEFT, "Zolder");


// Binnen vochtgehalte zolder
it.printf(x_pad, y_header_huis+140, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F058E");
it.printf(x_pad+40, y_header_huis+140, id(medium_fontm), TextAlign::BASELINE_LEFT, "%2.0f%%", id(hum_zolder).state);


// Binnen co2 zolder
it.printf(x_pad+160, y_header_huis+145, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F07E4");
it.printf(x_pad+200, y_header_huis+140, id(medium_fontm), TextAlign::BASELINE_LEFT, "%4.0f", id(co2_zolder).state);


// Binnen temperatuur Zolder
it.printf(xres-x_pad-120, y_header_huis+140, id(font_icons_medium), TextAlign::BASELINE_LEFT, "\U000F050F");
it.printf(xres-x_pad, y_header_huis+140, id(medium_fontm), TextAlign::BASELINE_RIGHT, "%2.1f°", id(temp_zolder).state);




//FORD


//Header with a line from [x=0,y=0] to [x=50,y=50]
it.printf(x_pad, y_header_ford, id(medium_fontb), TextAlign::BASELINE_LEFT, "Ford");
it.line(x_pad+100, y_header_ford-10, xres-x_pad, y_header_ford-10);


if(isnan(id(odometer).state))
{
//Header with a line from [x=0,y=0] to [x=50,y=50]
it.printf(x_pad, y_header_ford+40, id(small_font), TextAlign::BASELINE_LEFT, "No data available...");
}
else
{


// Ford km
it.printf(x_pad, y_header_ford+40, id(font_icons_small), TextAlign::BASELINE_LEFT, "\U000F0E1B");
it.printf(x_pad+40, y_header_ford+40, id(small_font), TextAlign::BASELINE_LEFT, "%5.0f km", id(odometer).state);


// Ford fuel
it.printf(x_pad, y_header_ford+65, id(font_icons_small), TextAlign::BASELINE_LEFT, "\U000F07CA");
if (id(dis_to_empty).state > 0 )
{
it.printf(x_pad+40, y_header_ford+65, id(small_font), TextAlign::BASELINE_LEFT, "%3.0f km", id(dis_to_empty).state);
}


// Ford oil
it.printf(x_pad, y_header_ford+90, id(font_icons_small), TextAlign::BASELINE_LEFT, "\U000F03C7");
if (id(car_oil).state > 0 )
{
it.printf(x_pad+40, y_header_ford+90, id(small_font), TextAlign::BASELINE_LEFT, "%2.0f%%", id(car_oil).state);
}


// Ford battery
it.printf(x_pad, y_header_ford+115, id(font_icons_small), TextAlign::BASELINE_LEFT, "\U000F010C");
if (id(car_battery).state > 0)
{
it.printf(x_pad+40, y_header_ford+115, id(small_font), TextAlign::BASELINE_LEFT, "%2.0f%%", id(car_battery).state);
}


// Ford tire pressure
// it.printf(xres-110, y_header_ford+105, id(xtra_small_font), TextAlign::BASELINE_LEFT, "Banden");
it.printf(xres-x_pad, y_header_ford+40, id(small_font), TextAlign::BASELINE_RIGHT, "LV %1.2f", id(front_left).state);
it.printf(xres-x_pad, y_header_ford+65, id(small_font), TextAlign::BASELINE_RIGHT, "RV %1.2f", id(front_right).state);
it.printf(xres-x_pad, y_header_ford+90, id(small_font), TextAlign::BASELINE_RIGHT, "LA %1.2f", id(rear_left).state);
it.printf(xres-x_pad, y_header_ford+115, id(small_font), TextAlign::BASELINE_RIGHT, "RA %1.2f", id(rear_right).state);


}


// Show date and time of last update
it.strftime((xres/2), yres-y_pad, id(xtra_small_font), TextAlign::BASELINE_CENTER, "Last update: %A %d %b %Y %H:%M", id(ntp).now());


//Divider draw a line from [x=0,y=0] to [x=50,y=50]
it.line(x_pad, yres-y_pad-30, xres-x_pad, yres-y_pad-30);


}
